Description
Products Description

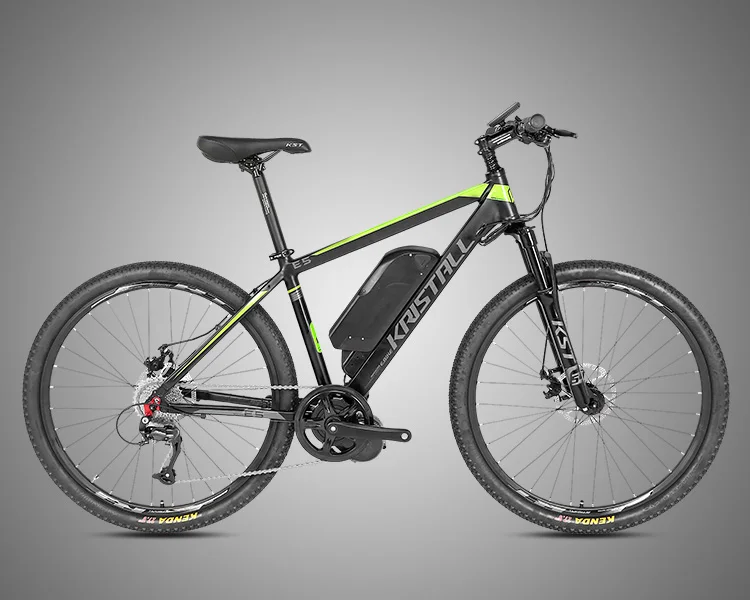

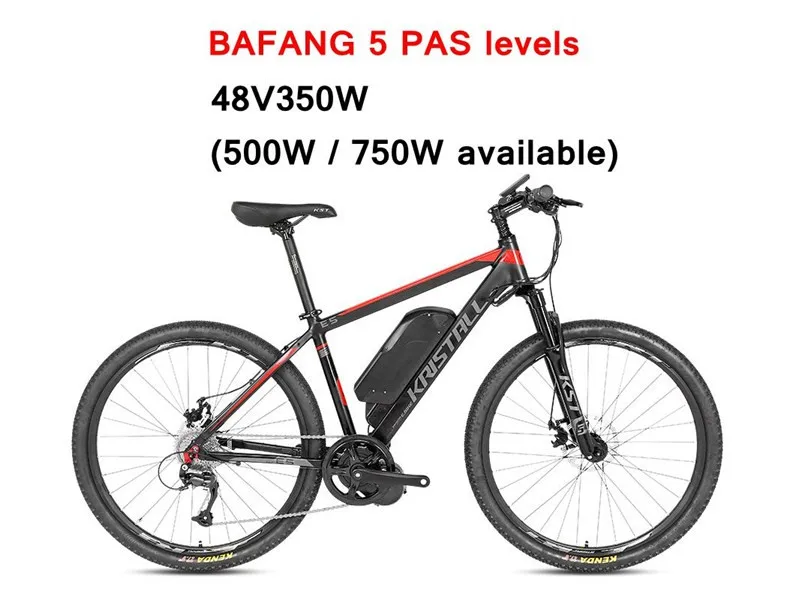

KRISTALL 26 27.5 29 inch electric bike with BAFANG middle drive 48V350W / 500W / 750W power.
|
Bike Model
|
E5-Mid
|
Electric Parameters
|
Specification
|
|
Bike Model
|
E5-Mid
|
Riding mode
|
Electric Power Assist (5 Shifts)
|
|
ConfRev
|
48V350W (500W / 750W available)
|
Pure Electric (5 shifts)
|
|
|
Wheel Size
|
26″ / 27.5“ / 29″
|
Pure Human Riding (9S)
|
|
|
Frame Height
|
15.5″ / 17″ / 19″
|
Endurance Mileage
|
Electric Power Assist,80~120KM
|
|
Bike Color
|
BlackRed / BlackGreen / BlackGray
|
Pure Electric,50-60KM
|
|
|
Net Weight
|
≈19.9 KG
|
Motor Assist speed
|
Max 40KMH, Optional speed limit 25KMH
|
|
Frame
|
E5, alloy AL6061,Smooth welding&inner Cable,Matte,UV decals
|
Max Load
|
150 KG
|
|
Handelbar Sets
|
Alu alloy with Matte,Hb31.8*680,St90,Sp31.6*350mm
|
Battery
|
LH18650 Power Lithium, 48V10Ah
|
|
Clamps
|
Alu alloy,Quick Release 34.9mm
|
with USB2.0 port 5V2A (For phones, etc.)
|
|
|
Fork
|
KST Alu alloy, Coil suspension, Manual-lockout
|
Full charging Time
|
4-6 Hours
|
|
Head Sets
|
Alu alloy CNC 44mm
|
Charging Times
|
>1000 Times
|
|
Washer
|
Alu alloy 3×28.6×10mm
|
Charging Protect
|
Overvoltage,Overcurrent Protection,etc.
|
|
Derailleur Lever
|
SHIMANO M2000-9 speeds
|
ShortCircuit,ReversecConnection Protection,etc.
|
|
|
Front Derailleur
|
None
|
Motor
|
BAFANG-BBS,Mid drive,48V350W / 500W / 750W
|
|
Rear Derailleur
|
SHIMANO M2000
|
DC Brushless,Toothed,Low resistance&noise
|
|
|
Cranksets
|
Matching with Mid Motor 44T with cover
|
Max Torque
|
≈80 N.M
|
|
Cassettes
|
SUGEK-9S,11-34T
|
Waterproof grade
|
IP65
|
|
Chain
|
YBN-9S
|
Controller
|
BAFANG,5 Shifts IC control system,Built-in Motor
|
|
BB
|
Matching with Mid Motor
|
Sine wave intelligent control
|
|
|
Brake
|
Z.STAR cable-pull Disc brake
|
Monitor
|
BAFANG,LCD digital display control instrument
|
|
Hub
|
RS Alu alloy, 2-sealed Bearings, Disc brake, Slotted
|
Display Function
|
MPH,Miles,Electricity,Shift,Failure,etc
|
|
Rim
|
Alu alloy with Double-wall&Rivets, W24×H19mm
|
Setting Function
|
Mileage cleared,Wheel size,etc
|
|
Spoke
|
SHUNJIU, Circular 14G, Bend head
|
Waterproof Grade
|
IP65
|
|
Tire
|
KENDA-K1187 or CST, 26″/27.5″/29″×1.95″
|
Assist Sensor
|
Built-in motor, Speed(cadence)
|
|
Grips
|
Circular, 22.2×130mm&2-locking ring,Comfortable
|
Shift Lever
|
Stepless speed regulation Lever
|
|
Saddle
|
Comfortable and Thickened for MTB
|
Brake power off
|
Power off brake Lever and Pedal Stop
|
|
Pedals
|
WP-625 Alu alloy with lubricating for MTB
|
Speed sensing
|
External speed sensor to Wheel
|
|
Cables
|
JAGWIRE,Internal cables,External cables
|
Wire connector
|
All waterproof quick connector
|
|
Accessories
|
Steel rear kickstand+Tools
|
Details Images
Different Colors
BlackRed / BlackGreen / BlackGray

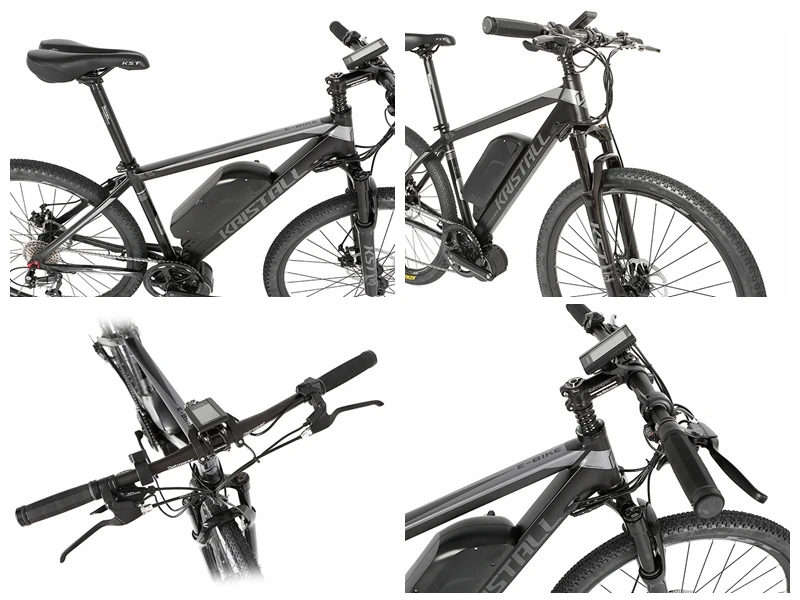

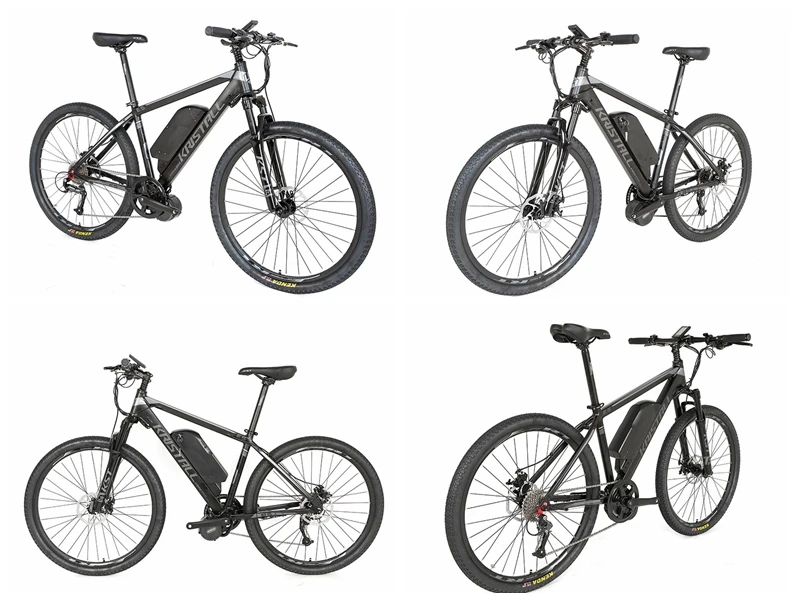

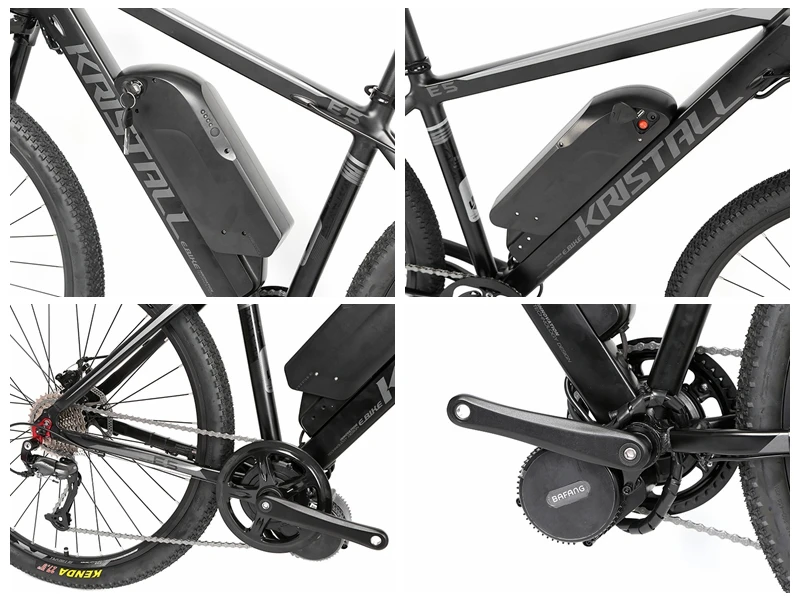

Different Angles

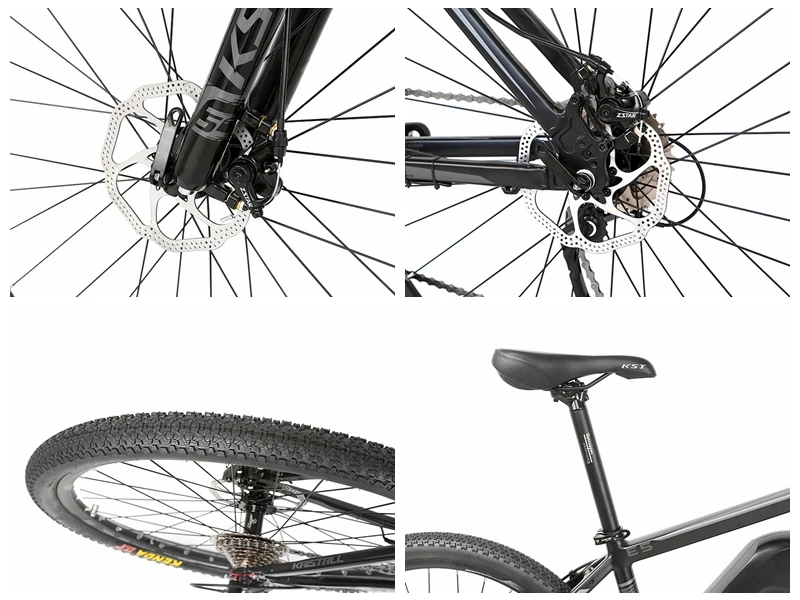

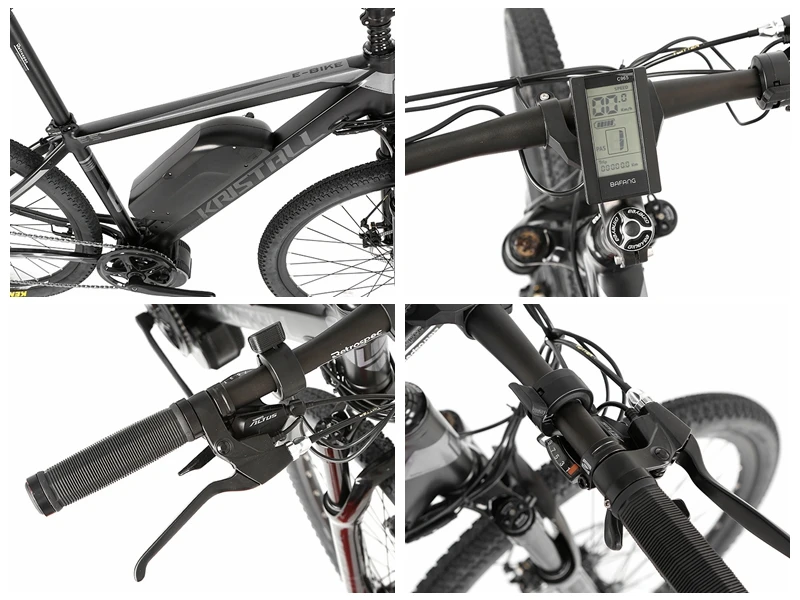

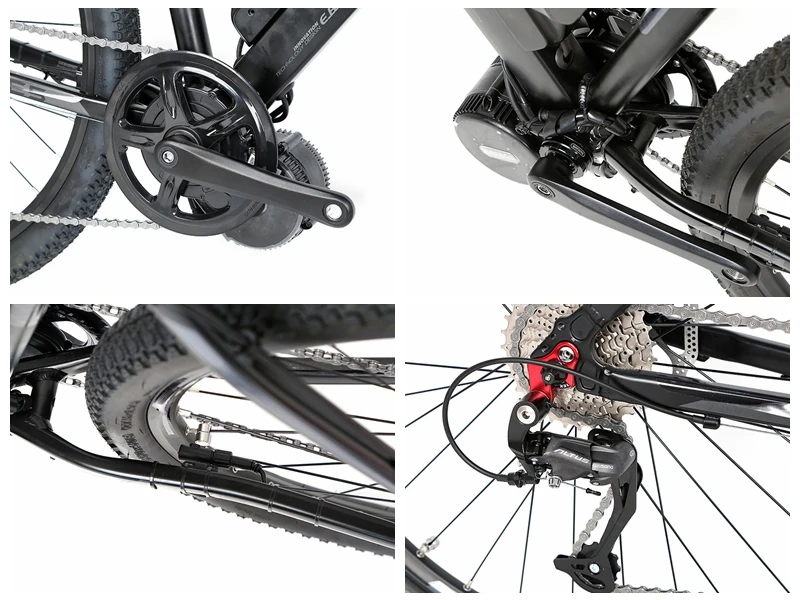

Components
>1.Frame:E5, alloy AL6061,Smooth welding&inner Cable,Matte,UV decals.>2.Handelbar Sets:Alu alloy with
Matte,Hb31.8*680,St90,Sp31.6*350mm.
>3.Fork:KST Alu alloy, Coil suspension, Manual-lockout.
>4.Gears:SHIMANO M2000-9 speeds
Matte,Hb31.8*680,St90,Sp31.6*350mm.
>3.Fork:KST Alu alloy, Coil suspension, Manual-lockout.
>4.Gears:SHIMANO M2000-9 speeds
Product packaging

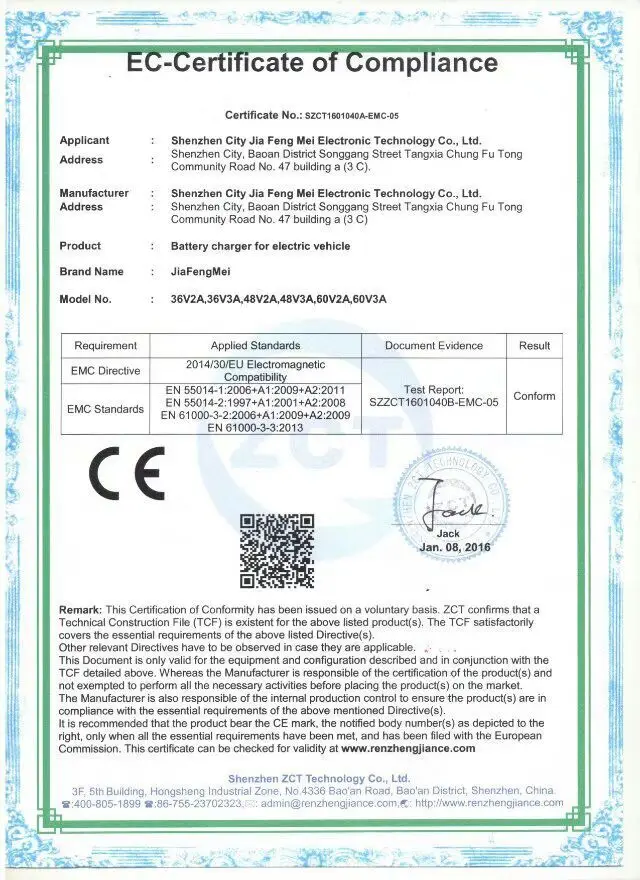

Certifications
Company Profile
Exhibition
Our Advantages
>1. Competitive Factory Price !
>2.Strict quality assurance !
> 3.Timely & Professional after-sales service !
> 3.Timely & Professional after-sales service !
