Description
Products Description

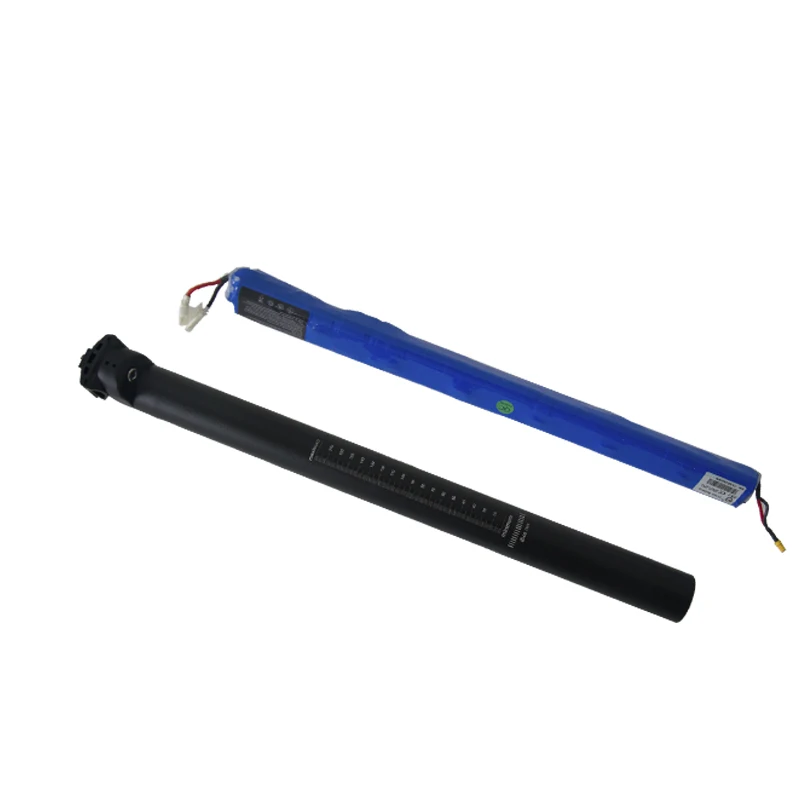

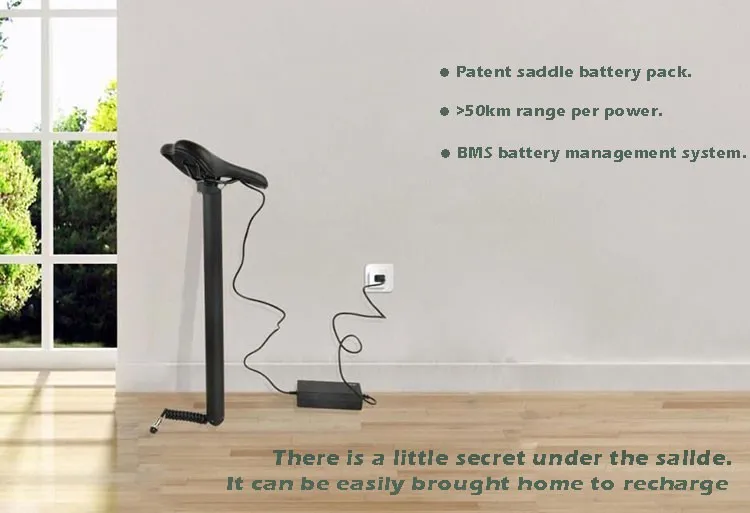

The special seatpost Battery
The seatpost rechargeable lithium-ion battery with the special hidden design,you won’t find it in the first sight,3 hours charge,easily taken out from the bike.
Domestic 5.2Ah and 7.0 Ah samsung battery for optional,not enough?Customize your own capacity!
THREE CYCLING MODES
Pure electric riding:Free your legs, save energy when you are tired.
Fitness riding:Like riding?Lose weight? You will never feel any magnetic resistance when ride without any power-it’s a pure,
comfortable bike.
Pedal assist riding:5-speed full power output makes climbing easier.
Fitness riding:Like riding?Lose weight? You will never feel any magnetic resistance when ride without any power-it’s a pure,
comfortable bike.

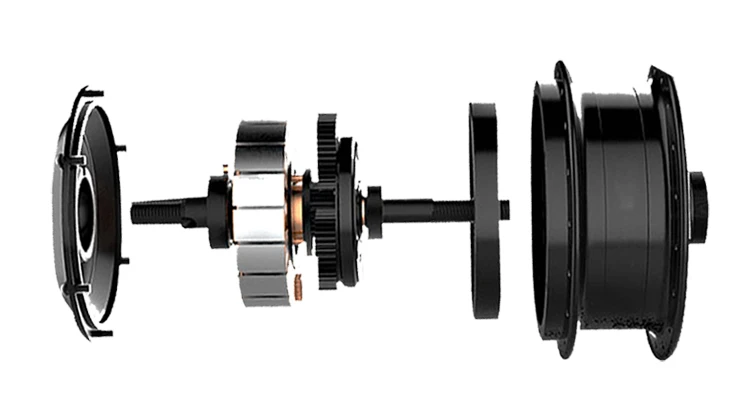

MOTOR
36V 250W/350W high-speed geared brushless motor with weighing 2kg and 40N.m torque you can bike uphill over 18°effortlessly,especially with the three riding models(pedal assist mode,pure power mode and fitness mode)will make you ride more comfortable.What’s more, with a build-in clutch, you will never feel any magnetic resistance when ride without any power-it’s a pure, comfortable bike.
The motor is provided by XIONGDAMOTOR company who was found in 2006,has a long history in Motor industry to ensure the quality of the motor and High cost-performance.

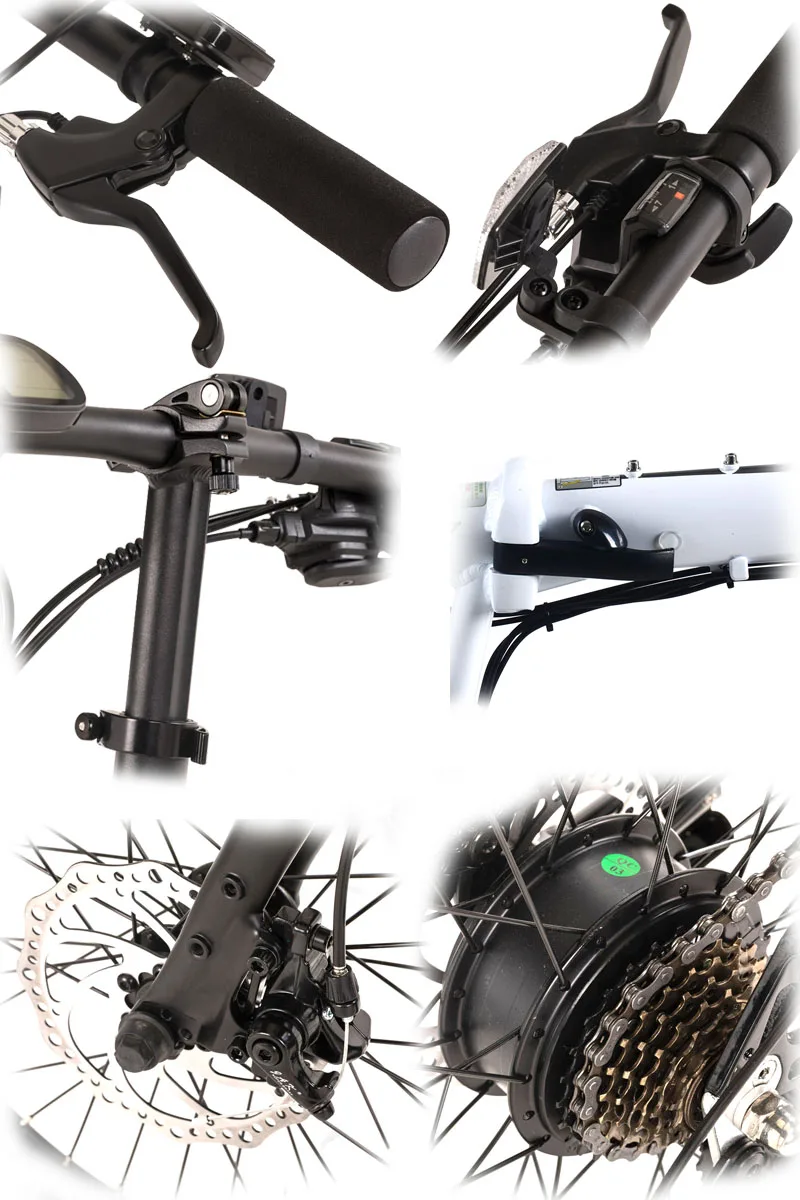

Detail
|

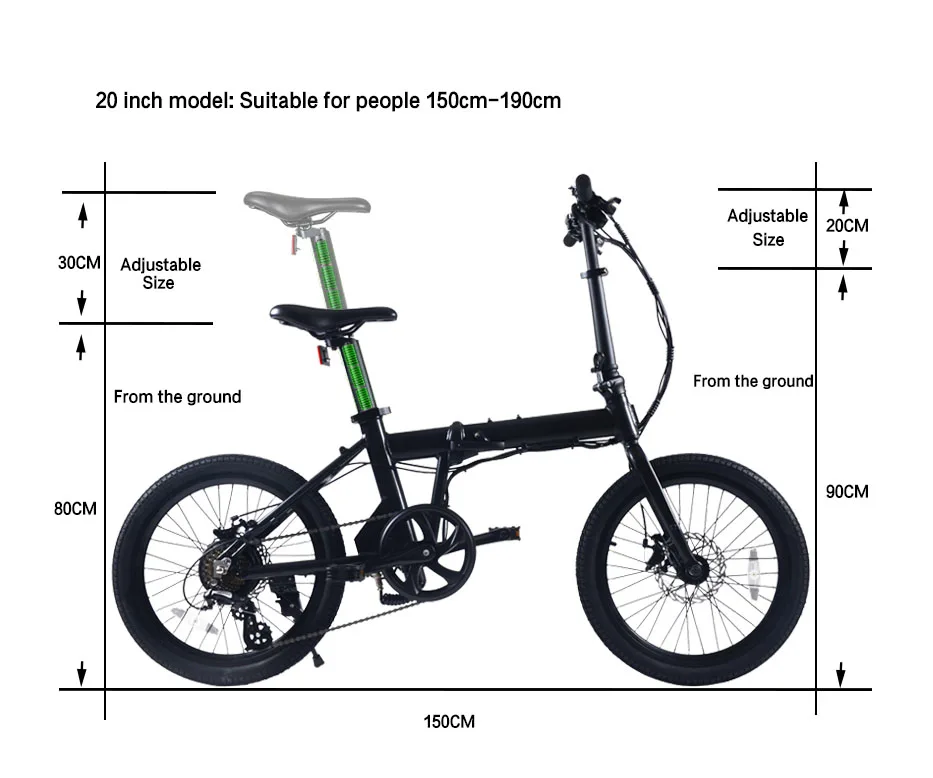

Basic Information
|
||||||
|
Expand Size
|
1500*580*1100mm
|
Folding Size
|
850*405*700mm
|
|||
|
Net Weight
|
17.5KGS
|
Gross Weight
|
25KGS
|
|||
|
Cycling System
|
5 PAS +Cruise
|
Range
Max Speed
|
30KM
25KM/H
|
|||
|
Standard Load
|
100KGS
|
Charging Time
|
3 hours
|
|||
|
Main parts
|
||||||
|
Frame
|
Special 6061 aluminum alloy frame
|
Handlebar
|
Aluminum alloy black
|
|||
|
Battery
|
36V 5.2Ah 18650 lithium-ion battery
|
Handle Grip
|
EV foam handle
|
|||
|
Motor
|
250W /350W brushless high speed motor
|
Rims
|
Aluminum alloy single layer ring
|
|||
|
Brake
|
Front and rear mechanical JIEKE disc brakes, 160mm G3 Disc brake
|
Gear Crank
|
Prowheel 48T
|
|||
|
Display
|
KUNTENG LCD Smart Display
|
Pedal
|
Folding non-slip pedal
|
|||
|
Controller
|
Kunteng Sine wave controller
|
Handle stem
|
Folding single-segment stem
|
|||
|
Rear Derailleur and Free Wheel
|
SHIMANO RD-TY300 and MF-TZ500-7
|
Saddle
|
Ergonomic comfort saddle
|
|||
|
Brake Handle
|
All aluminum alloy disc brake special brake lever
|
Tire
|
20*1.95 kenda tire
|
|||
Team
Who we are cooperating
Customized strength
Customized Brand Logo
Customized Color
Customized Your Special Ebike

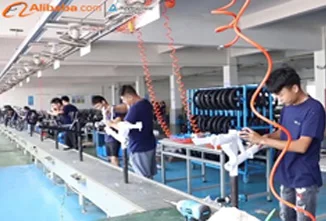

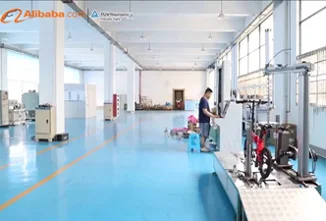

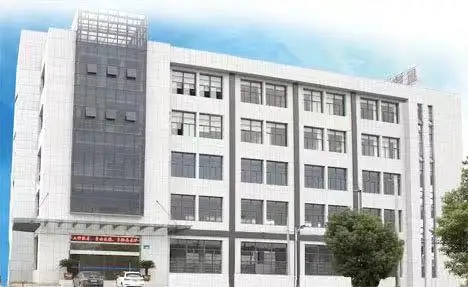

Company Profile
Changzhou Hottech Co., Ltd. is a large electric bicycle manufacturer with over 3 years experience to cooperate with big brand bike company in South Korea”Samchuly” and parts supplier “Shimano”,we have enough strength to solve any problems about products and markets,every year we developed ten more new models according to the needs of consumers.We have complete testing equipments,and we firmly believe Quality and after-sales service are the biggest guarantee for long-term cooperation.

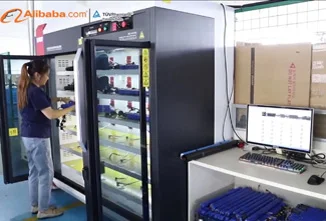

We have strict QC management,and provide all QC testing reports of our products that you may need.

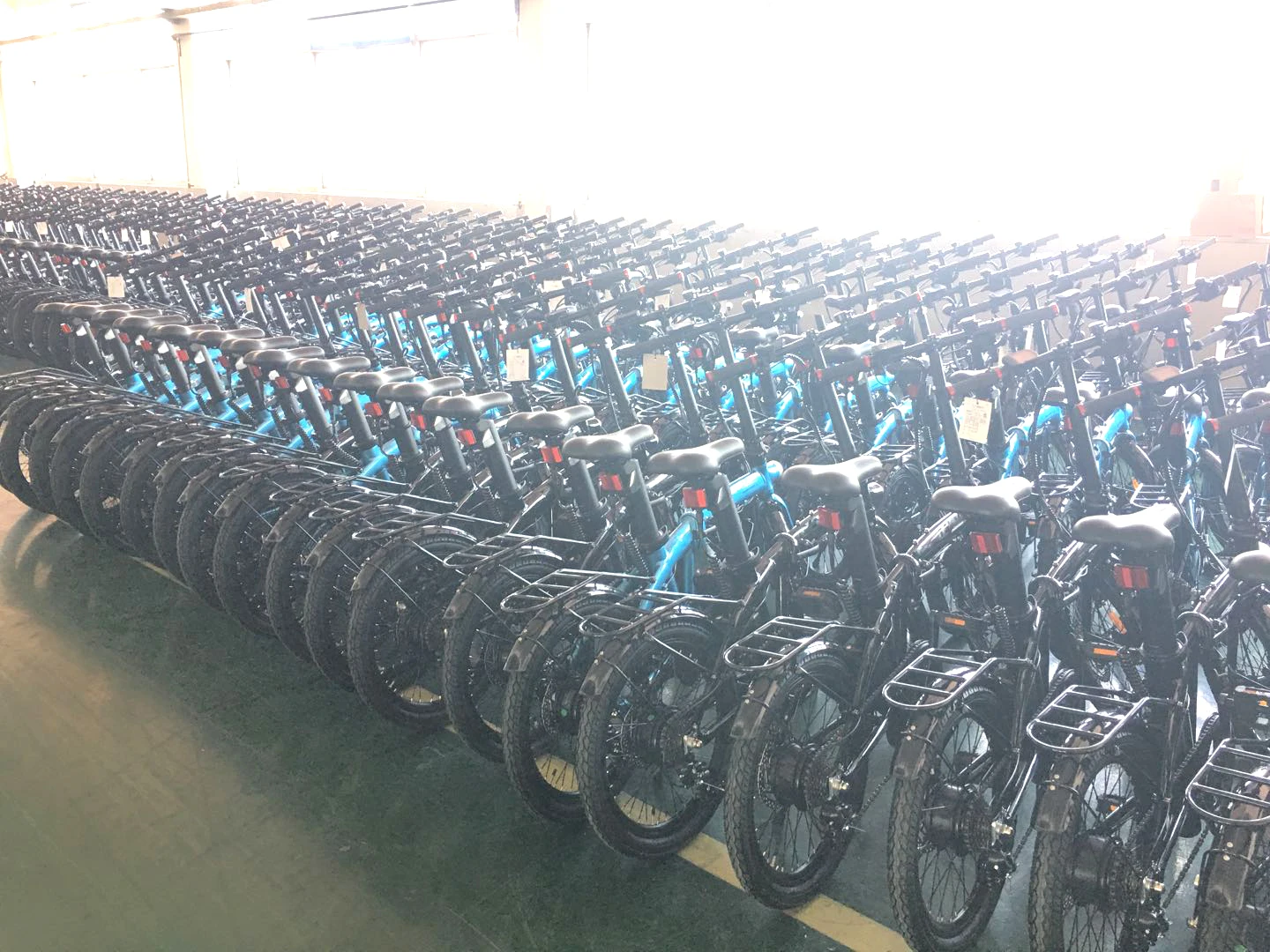

Our production capacity:200 units per day now,we have the strength to provide more if you need.
EUROBIKE
Certifications and Warranty
Simply,Trade Assurance Order is that the Alibaba will be responsible for the order until everything is Fine.
|
Motor
|
Battery
|
Charger
|
Brake lever
|
||
|
24 months
|
24 months
|
12 months
|
6 months
|
||
|
Controller/sensor/instrument
|
12 months
|
||||
|
Frame/head tube fork
|
12 months
|
||||
According to your approved photos,any parts of the electric bike can be replaced during the guranteed time. If you have any problems ,do not hesitate to cantact with us by trademanager /Email/Skype/Whatsapp. We will be glad to solve problems at any time once we receive your message within 24 hours.
Packing & Delivery
All-around protected foldable packing
The ebike will be packed with a combination of soft foam and cardboard to give it double protection.
We guarantee that the product will reach you without any damage.
We guarantee that the product will reach you without any damage.
Unfoldable packing is also available if you want,but will be a little expensive in shipping cost,because of bigger CBM.
Shipping customized
We offer three kinds of shipping way,Air, sea and rail transport to different area.
If you want it be fast,by air,will take 7-15days ,from different country.
If you order bulk orders and we suggest by sea.It will cheaper,but take more time,above 30 days.
And now to EU ,we can also ship by railway,it will be a good choice if you are end user or if you just want to buy a sample ,it’s not expensive especially in this high import taxes situation in EU.It will take around 25 days.
We can also offer DDP shipping term service in some special countries.So just don’t worry about shippment,we will deal with it well for you.
FAQ
1. Q: Can I get some samples? A: Yes, sample order is available for quality check and market test. and For bike sample, we have sample price, we can refund you some charges after you put bulk order. 2. Q: What’s the delivery time? A, For our ordinary folding bikes, we have black, red and white colors in stock, we can deliver after order within 15 days. For bulk order by container, it usually takes about 20-30 days for production.If it is customized, around 30-45 days. It depends on the spare parts demand. 3. Q: What’s your payment terms? A: We usually accept T/T, Cash, Paypal, West Union, Amazon on line payment (for USA, Mexico and Canada Japan only) or alibaba online payment as the main payment terms, and other payment can also be negotiated. 4. Q: How does your factory do regarding the quality control? A: Quality is priority..Our factory has 30 years history for auto mobile industry. We manager our factory by ISO9001 and TS16949.We always attach great importance to quality control from the very beginning to the end of the production. Every bikes and the components will be fully assembled and carefully tested before packing and shipping. 5. Q: Can I have my own Logo? Can I choose any color? A: Yes, it will charge extra USD50 to customize your logo. And you can choose any color for most of the folding bikes. If your order reach 100 sets, we can discuss again for the price. 6. Q: Can I mix different models in one container? A: Yes. Different models can be mixed in one container. 7. Q: What’s your warranty terms? A: We offer different warranty time for different components, please contact us for details. If your order quantity can be container, we will send 2% spare parts for warranty service.
